NYO&W
Standard Outhouse
A Concrete Structure

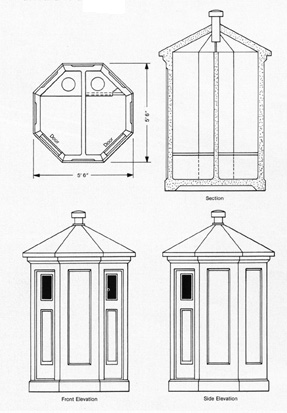

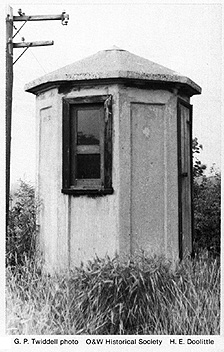

     The New York, Ontario & Western Railway's concrete sanitary outhouses, of the type shown in the drawings, looked very similar to their telephone booth shown in the photo, and were sometimes mistaken for them.

     The C.F. Massey Co. manufactured these sanitary reinforced concrete outhouses and sold them in 1911 for $85 FOB Newark, New Jersey. These little structures had an occupancy for two and were portable, although of considerable weight. The outside walls of the octagonal-shaped structures had built-in panels, two doors with windows, a tin-centered roof vent and octagonal peaked roof. It is believed that Massey also manufactured the telephone booths, using similiar concrete casting except for the door and window positions and without the roof vent.




Julian Cavalier

Drawn Expressly for
MAINLINE MODELER
Copies of these drawings may be
made for noncommercial use only.

O Scale








© 1987, Mainline Modeler, Volume 8, Number 6
